This listing is for one brand new rear shock - please note it does not include fittings needed to mounted or the coil spring - please see guide below
*** DOES NOT INCLUDE COIL SPRING ***

Imperial:
8.5 x 2.5

adjusters:
shorter lengths come in 2-position climb lever



Recycledmountainracing.com's notes and our simple guide to rear mtb shocks
Will this shock fit my bike?
There are generally 3 types of shock styles on the market:
1) Imperial - measured in inches with eyelets on each end
2) Metric - just like imperial with one eyelet on each end but measured in millimeters
3) Trunnion Metric - this is a compact shock with an eyelet on one side and two fixed bolts on the other end
YOU WILL NEED A SHOCK TYPE AND SIZE THAT IS A MATCH FOR YOUR FRAME
If you're not sure on type and/or size please message us

SPRING:
This listing does not include the coil spring -
You will need a spring that has correct ride sag for your weight and intended application
Two springs are available from Fox:
1) The SLS spring - (orange susperlight) for $130
2) The steel spring (black) for $30
if you need a spring we can do a calculation for optimal setup - please message us

Also, shock eyelets will require mounting hardware (washer kits) to mount properly to your frame
The hardware kits are generally $15/ea and you will need 2 kits per bike for two eyelet shocks
there are dozens of sizes of hardware and you will need correct sizes for your frame -
Sometimes you may be able to use the old hardware off the old shock -
The bolts will come with your frame and are not included with the rear shock or hardware
Please message us if you need new hardware
adding hardware to the order can delay shipping a couple days if we need to get the correct size from the factory

Got Questions? Message us!





aftermarket packaging - including manuals
full manufacturer warranty




Manufacturer Specs:


READY TO RACE

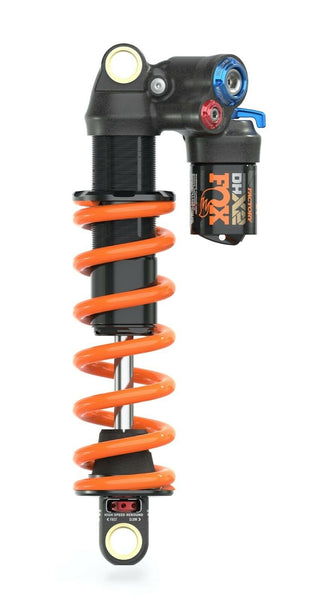

Nothing sticks to the ground quite like a coil shock. The DHX2 takes that sensation and buttresses it with sophisticated progressive damping, a massive overall tuning range, and super low-friction internals in order to capitalize on the full race-spec magic carpet experience.
“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.


SIZES (With 2-position Adjust Lever)
Trunnion Metric Sizes
185 x 50 / 185 x 55 / 205 x 60 / 205 x 65

SIZES (Without 2-position Adjust Lever)
Trunnion Metric Sizes
225 x 75

ADJUSTMENTS
Optional 2-position Open/Firm lever (retains high and low speed compression adjustment)
High-speed compression - 8 clicks
Low-speed compression - 16 clicks
High-speed rebound (w/VVC) - 8 clicks
Low-speed rebound - 16 clicks
Coil spring preload - (new detents on spring collar)

ALL FACTORY DHX2 SHOCKS
Shaft Coating
Chromoly - Ultra-low friction, highly durable damper shaft finish
VVC Rebound
Yes
Detents on spring collar
Yes

SPECS & FAMILY FEATURES
NEW chassis & damper
NEW detents on spring collar to prevent loosening under light preload conditions
NEW high-flow main piston
NEW MCU bumper for increased end stroke progression and bottom out control
NEW ultra-low friction, highly durable hard chrome damper shaft finish
NEW improved high-speed rebound tunability via addition of VVC (Variable Valve Control)
NEW improved bearing ratio for metric sizes
NEW graphics
Matching 8-click HSC and HSR adjustment on GRIP2 forks and X2 shocks
Increased control and decreased harshness via linear damping
Steel outer body and finned inner body for improved structural rigidity and reduced hysteresis
Independent firm mode circuit – firmer lockout than previous DHX2
Reduced friction
Reduced length reservoir for better fit on more frames
