2020 Öhlins RXF36 m.2 fork (wheel and travel options) Air

$ 1,250.00

This listing is for one brand new mountain bike suspension fork


Please see menu at top of listing for options

Wheel size / fork offset / travel



aftermarket packaging - including manuals

full manufacturer warranty


Got Questions? Message us!



Manufacturer Specs:

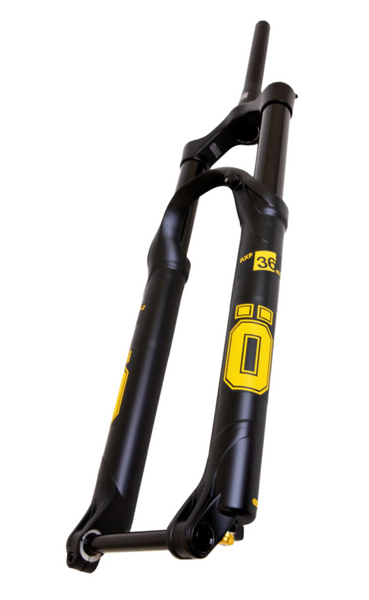

2020 Öhlins RXF36 m.2 fork 27.5″ Air

The new front fork with TTX 18 cartridge kit

Description

The race proven TTX 18 dampening from the DH38 Race Fork has been reworked to give optimal traction and control on trails and Enduro race courses. The TTX 18 cartridge kit featuring trail-optimized 18 mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.

The adjustment range specifically for trail to Enduro race use with 15 clicks of low speed compression and low speed rebound. For high speed compression you get 3 clicks plus a climb mode setting. Retuned twin piston three chamber air spring system allowing total air spring tuning from the initial movement through to the bottom out.

Improved tire clearance, the chassis will take up to a whopping 27.5×2.8. There are many technical improvements in the fork but we did not stop there, the design has also been updated and matches what you see on the race courses.

Features

TTX-technology

Air: travel 150-180 mm

Independent spring system

Independent damper system

Retuned air spring system

36 mm upper tube diameter

Offset 46 mm or 38 mm

Compatible maximum tire sizes 27.5 x 2.8

E-bike approved

Race proven setting bank

Overall improvements for reducing friction

2020 Öhlins RXF36 m.2 Trail Fork 29″ Air

The new front fork with TTX 18 cartridge kit.

Description

The race proven TTX 18 dampening from the DH38 Race Fork has been reworked to give optimal traction and control on trails and Enduro race courses. The TTX 18 cartridge kit featuring trail-optimized 18 mm piston for improved small bump sensitivity. With increased damping pressure bandwidth the damping valve response and sensitivity has improved.

The adjustment range specifically for trail to Enduro race use with 15 clicks of low speed compression and low speed rebound. For high speed compression you get 3 clicks plus a climb mode setting. Retuned twin piston three chamber air spring system allowing total air spring tuning from the initial movement through to the bottom out.

Improved tire clearance, the chassis will take up to a whopping 29×2.8 and 27.5+ x 3.2. There are many technical improvements in the fork but we did not stop there, the design has also been updated and matches what you see on the race courses.

Features

TTX-technology

Air: travel 150-180 mm

Independent spring system

Independent damper system

Retuned air spring system

36 mm upper tube diameter

Offset 51 mm or 44 mm

Compatible maximum tire sizes 29x2.8 / 27.5+ x 3.2

E-bike approved

Race proven setting bank

Overall improvements for reducing friction
